3kw Portable Electric Car Charger With Adjustable Current And Delay Charging

Marchio:	ANS
Numero di modello:	EVA03B
MOQ:	1
Dettagli dell' imballaggio:	15.7153.15 (dentro)
Condizioni di pagamento:	L/C, T/T, Western Union

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Certificazione:

Nome prodotto:

Caricatore portatile dell'automobile elettrica

Funzione funzione:

Regolazione corrente, rettifica di ricarica di ritardo

Tipo:

caricatore portatile del ev

Corrente valutata::

Frequenza nominale:

50Hz/60Hz

Temperatura di conservazione:

-30 ℃ a +50℃

Stardard:

EN 61851-1: 2017/EN 62196-2: 62752:2017 2017/EN

Colore cavo:

Il nero o personalizzazione

Protezione:

Certificazione:

Capacità di alimentazione:

100000pcs/mese

Descrizione di prodotto

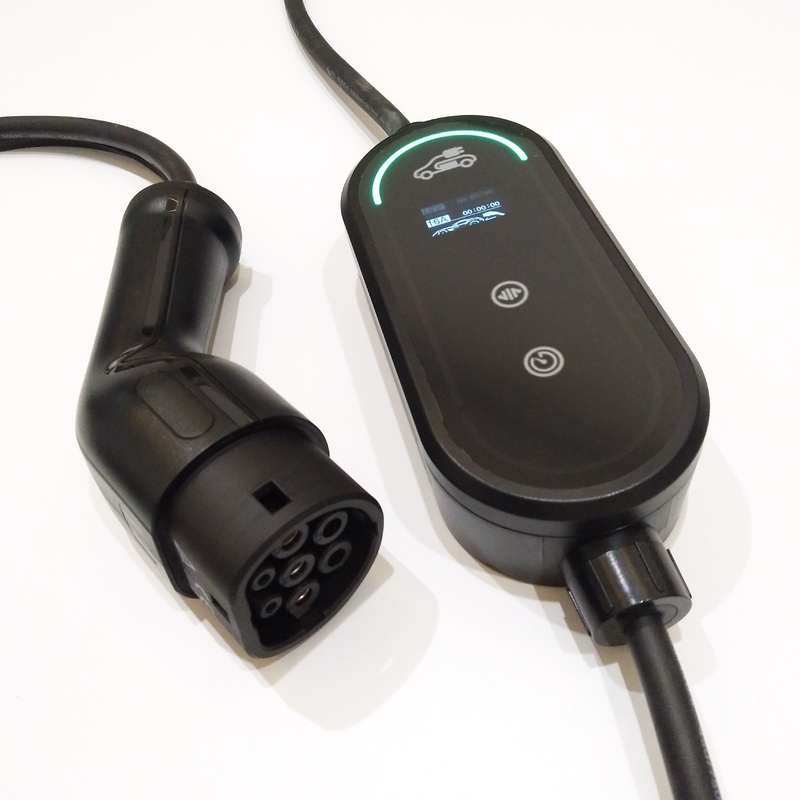

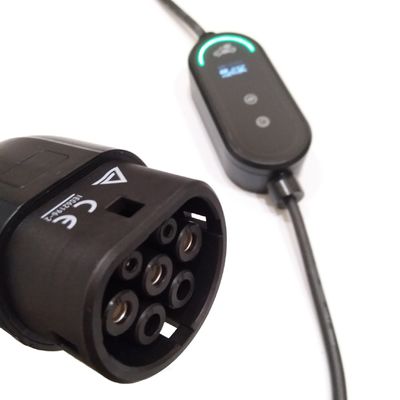

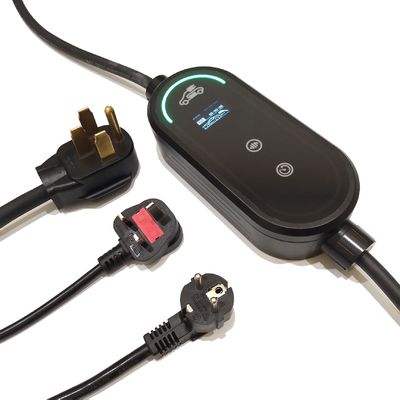

3kw Portable Electric Car Charger With Adjustable Current And Delay Charging

Overview

The EVA03B 3kW Portable Electric Car Charger With Adjustable Current And Delay Charging is the ideal entry-level solution for safe and intelligent charging at home or on the go. It combines essential smart features with robust safety in a compact, lightweight design.

Adjustable Current: Customize charging from 6A to 16A to match any standard household socket, preventing circuit overload.
Delay Charging Setting: Program charges to start during off-peak hours, maximizing electricity cost savings.
LED Light & Touch Key: An intuitive interface with clear indicators for easy operation in any condition.
Built-in RCD Type B: Offers the highest level of protection against electrical hazards, including smooth DC fault currents, ensuring complete peace of mind.

Ideal for daily use with smaller EVs or as a reliable backup charger.

Specificaiton

Product Model EVA03B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 3.7kW(@230V 16A)
Max.output current	16A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.1kg
Colour&Material	Black;Tempered Glass,PC

Features

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

3kw Portable Electric Car Charger With Adjustable Current And Delay Charging 0

3kw Portable Electric Car Charger With Adjustable Current And Delay Charging 1

LED Indicators

3kw Portable Electric Car Charger With Adjustable Current And Delay Charging 2

Installation cases

Packaging

Our Certification

Exhibition

3kw Portable Electric Car Charger With Adjustable Current And Delay Charging 6

Visits from Various Countries (looking forward to your arrival)

3kw Portable Electric Car Charger With Adjustable Current And Delay Charging 7
